Shear Cut Knife Holders

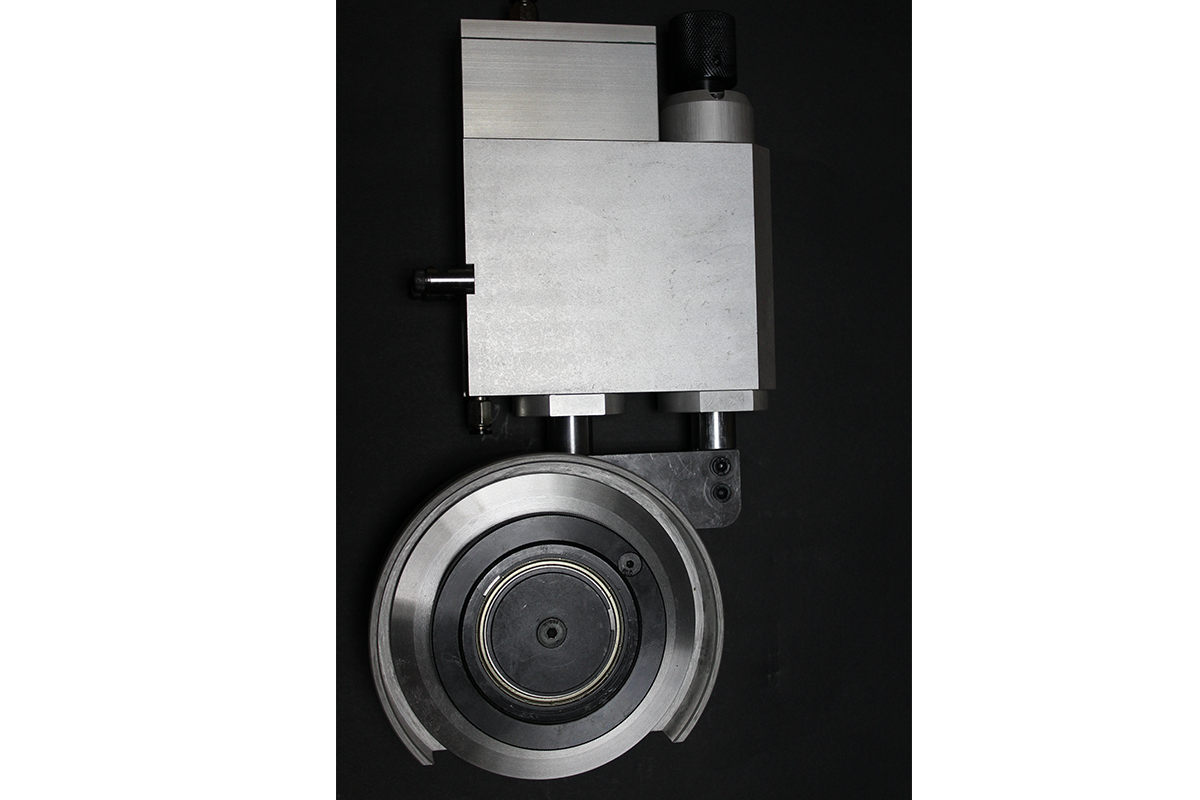

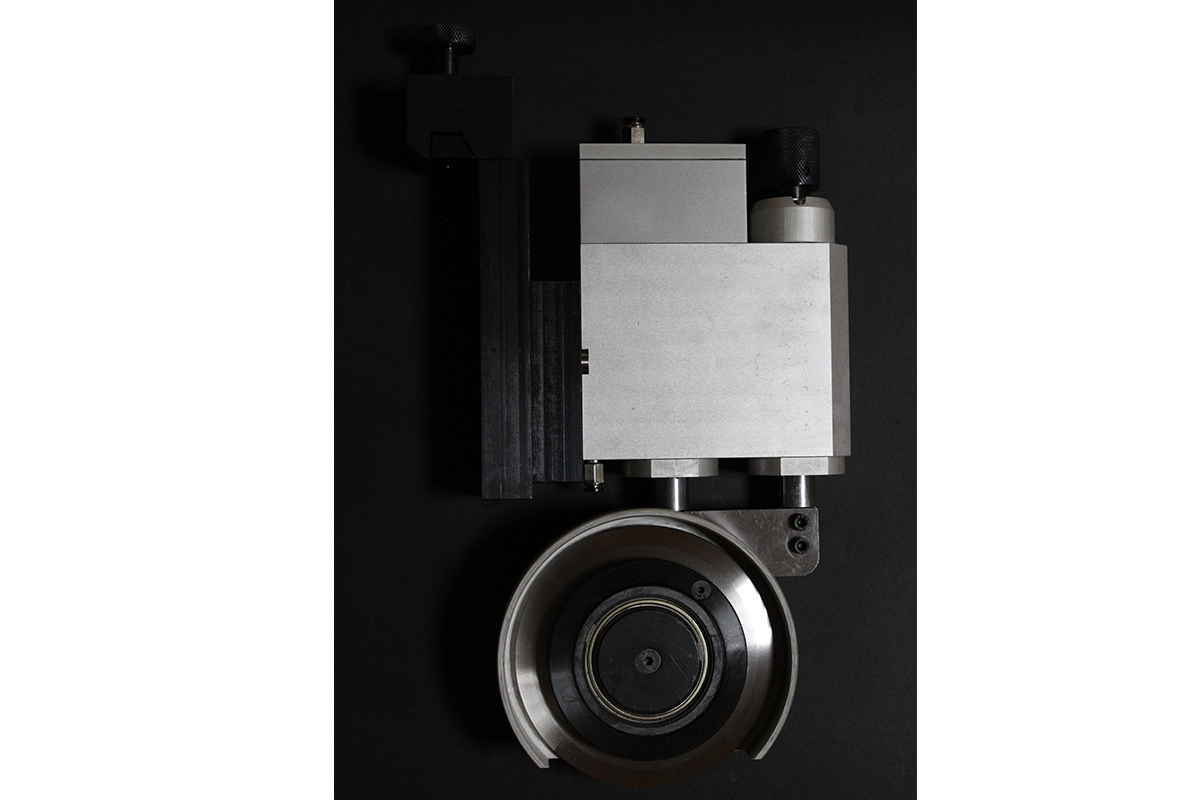

The pneumatically dished knife holder (PMA-45) reach min. 45 mm cut wide. These holders can be supplied in two different models. One model allows the vertical and horizontal stroke with an air input. In the second model, each axial stroke is independently exercisable.

Vertical stroke: 30 mm
Horizontal stroke: 2 mm

This holder is available with two types of knives.

Model PMA-45-130 comes with a 130x80x1.5 mm diameter dished knife.
Model PMA-45-150 comes with a 150x80x2.0 mm diameter dished knife.
